Rocky Mountain Vertex 30

Rocky Mountain Vertex 30
Please select options
Sorry, this item is currently not available. Please contact us to check availability.


Simplify your riding with the pure fun of a hardtail. Crafted from Rocky's FORM aluminum, Rocky's Vertex 30 delivers top-notch handling, acceleration and climbing. Bumps are smoothed thanks to RockShox bringing 100mm of travel to the party with their Recon fork. And, expertly spec'd with a SRAM/Shimano drivetrain and Avid discs, the Vertex shifts and brakes like a dream. Plus, the DT Swiss hoops are hand built and tested in-house for a reliable, long-lasting wheelset.

Rocky Mountain's Vertex frames feature their ST3, or Sloping Top-tube Technology. This configuration, which incorporates a sloping top tube for extra clearance and a stronger, stiffer, more responsive frame, was born from Southern British Columbia's tight, technical singletrack. This sweet design creates a more compact front end for more agility and maneuverability, with extra stiffness for top-notch control, too.
Rocky Mountain's FORM design allows them to build bikes with an unmatched ride quality you’ll feel the moment you hit the trails. Every detail of Rocky's FORM frame-tube design has a purpose, from the outer shape and profile, to the wall thickness, tapers, flares and bends. And the result is the ultimate ride.

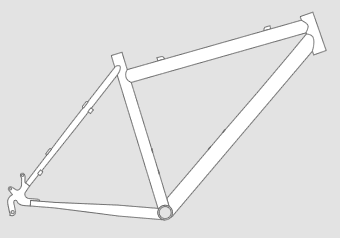

The geometry chart for the Rocky Mountain Vertex.

This manufacturer's chart helps you check the fit (may show unavailable, and/or not all sizes).


Frame RMB FORM 7005-aluminum
Fork RockShox Recon Silver R, 100mm-travel w/lockout
Rims/Wheels DT Swiss 445D tubeless ready
Hubs Shimano M475
Spokes DT Swiss Champion
Tires Maxxis Crossmark, 26 x 2.1
Crankset Shimano
Chainrings 44/32/22
Front Derailleur Shimano SLX
Rear Derailleur SRAM X-9
Rear Cogs SRAM PG-950, 9-speed: 11-32
Shifters SRAM X-5
Handlebars Easton
Stem Easton
Brake Levers Avid Juicy 3
Brakes Avid Juicy 3 hydraulic disc, 6-inch rotors
Pedals Shimano M505 clipless
Saddle WTB Rocket V Comp
Seatpost Easton

* Subject to change without notice.

Part Numbers

Option UPC MPN
15-inch 770416136401 CRG1031511
16.5-inch 770416136418 CRG1031611
18-inch 770416136425 CRG1031811
19-inch 770416136432 CRG1031911
20.5-inch 770416136449 CRG1032011
